Charter

A catalog of chart and diagram types for Raycast. Browse by family, pick the library you are working in, and copy the docs link, a complete example or a prompt snippet for it without leaving the keyboard.

Commands

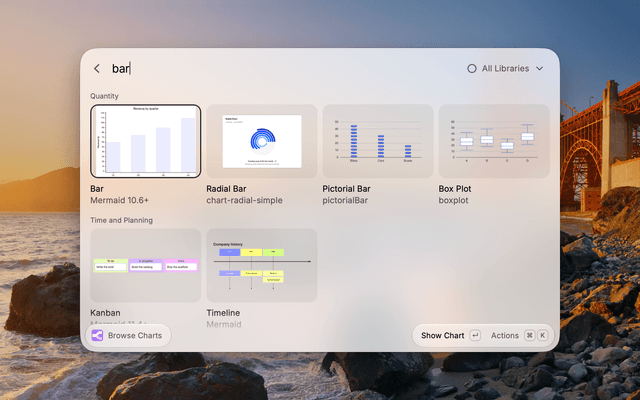

• Browse Charts lists every type, grouped by family, with your favorites and the five types you last opened or copied from at the top. The dropdown in the search bar is the lens: All shows every type with Mermaid first, and Mermaid, shadcn or ECharts narrows the catalog to what that library can draw and shows that library's picture, example and docs on every type. cmd+shift+l switches between a grid of thumbnails and a list with a detail panel; cmd+= and cmd+- change the tile size. Search matches names and synonyms, so "spider" finds Radar and "flow of money" finds Sankey.

What each lens shows

• Mermaid: the first-line keyword, a complete example and the docs page. Types added since Mermaid 10 carry the release that added them, as Mermaid 11.6+, because whether a type renders in a given app depends on the Mermaid version that app bundles.
• shadcn: the chart block from the shadcn registry with its component source and install command, plus every variant in that family (stacked, horizontal, interactive and so on) with its own install command. shadcn charts are built on Recharts, so there is no separate Recharts lens. Thumbnails are the real cards from ui.shadcn.com.
• ECharts: the series type and a complete option as JSON, ready to paste. Choropleth Map and Flow Map require your own GeoJSON map data, registered with echarts.registerMap("world", geoJson) before applying the option. Charter does not bundle map data; Choropleth data names must match the names in your GeoJSON.

Actions

• Open Docs opens the current lens's page for the type. It is the Enter action on the chart page and in the list when the detail panel is open; elsewhere Enter opens the chart page.
• Under the shadcn lens, Open Preview opens the block on ui.shadcn.com.
• Copy Docs Link, Copy Template and Copy Prompt Snippet put the link, the example, or a ready-to-paste instruction for a model on the clipboard, for the current lens. The template comes inside a fence (mermaid, json or ```tsx) so it drops straight into a chat or a note; Copy Raw Template gives the bare text.
• Copy Install Command copies npx shadcn@latest add <block>; Copy Variant Install Command and Copy Variant Component offer every block in the family.
• Under Libraries, the other libraries' docs and examples stay one action away whatever the lens.
• Add to Favorites pins a type to the top of the catalog, and Clear Recent empties the Recent section.

Development

npm run dev serves the extension; npm run lint and npm run build must pass before a commit. Two scripts refresh the content that ships with the extension: npm run shadcn pulls the chart blocks and their source from ui.shadcn.com into src/data/shadcn.ts; npm run thumbnails redraws every thumbnail in assets/charts (Mermaid and ECharts locally, shadcn from the previews on ui.shadcn.com). The thumbnail script needs a Chromium-based browser and a prior npm run vendor, which copies Mermaid, ECharts and the world map from node_modules into the git-ignored .vendor folder; none of that is part of the extension itself.

Licenses

Charter is MIT. It ships the chart block sources from shadcn/ui (MIT) as examples. The thumbnails were drawn with Mermaid (MIT) and Apache ECharts (Apache 2.0), with country outlines from world-atlas (ISC, derived from Natural Earth, public domain).
